RMS-series Multi Zone 100V Amplifiers

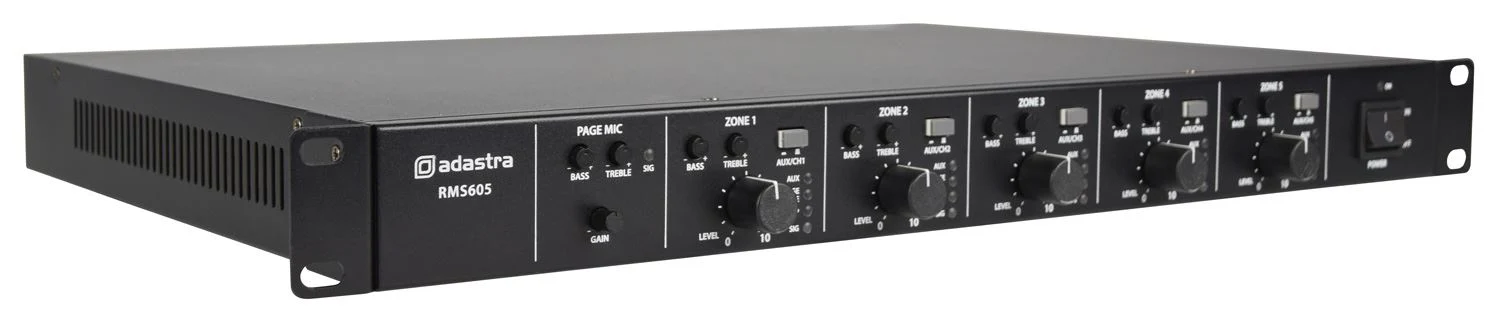

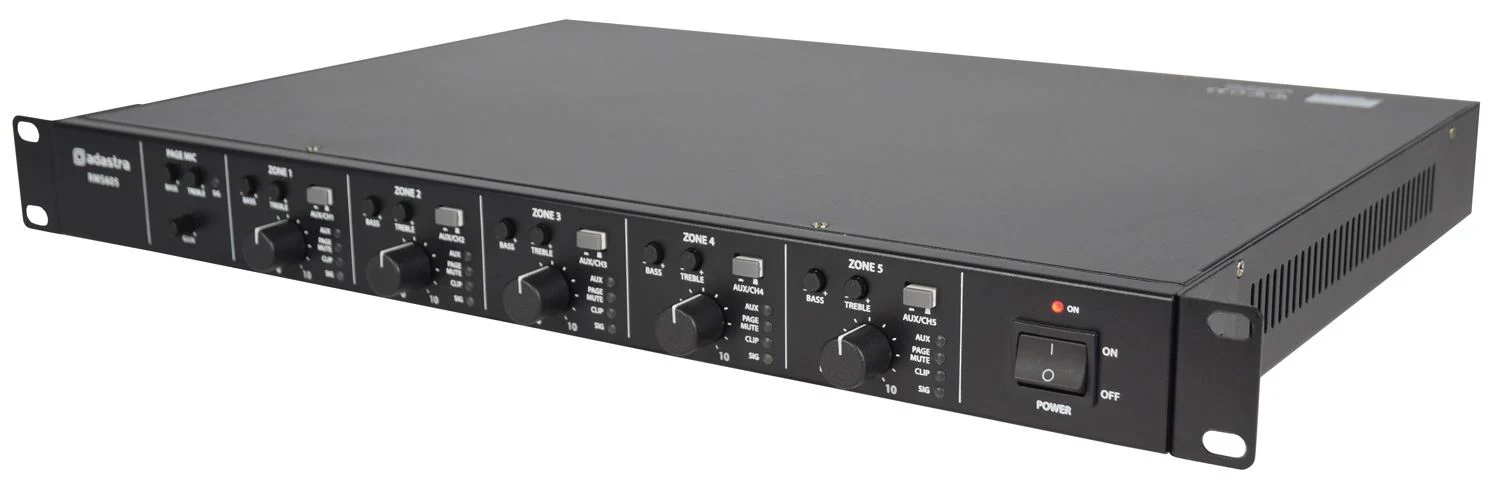

The RMS605 is a Multi-channel slave amplifier with 5 x 60W outputs for 100V, or 4-16Ohm speakers.

Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required.

Paging microphone input is always live to all channels for voice alerts, and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override.

Class D circuitry design and efficient toroidal transformers have enabled for a design which fits into a 1U rack-mount housing.

The RMS605 can be applied as a high power slave amplifier or equally as a fully independent zoning system for a multi-room installation.

PRODUCT FEATURES:

5 x class D high efficiency amplifiersOutputs for 100V or 4-16 Ohm speakersIndependent inputs and optional global aux inputPaging microphone input with vox overrideSwitchable +20V phantom power for paging microphone24V contacts for emergency muting

SPECIFICATION:

Power supply 100-240Vac, 50/60Hz (IEC)Fuse T2ALPower rms : 100V line5 x 60WPower rms : 4 Ohms5 x 60WMicrophone input Balanced XLR (rear panel)Mic controls Gain, Bass, Treble & Vox (rear panel)Channel inputs 5 x L+R RCA or balanced terminalAuxiliary input L+R RCAOutput controls Level, Bass, Treble & Ch/Aux switchOutput connection 5 x 100V or 4 Ohm (Euroblock terminal)Phantom power +20V switchable (paging mic)Emergency control 24V mute contacts (Euroblock terminal)Dimensions 482 x 330 x 42mmWeight 8.17kg
