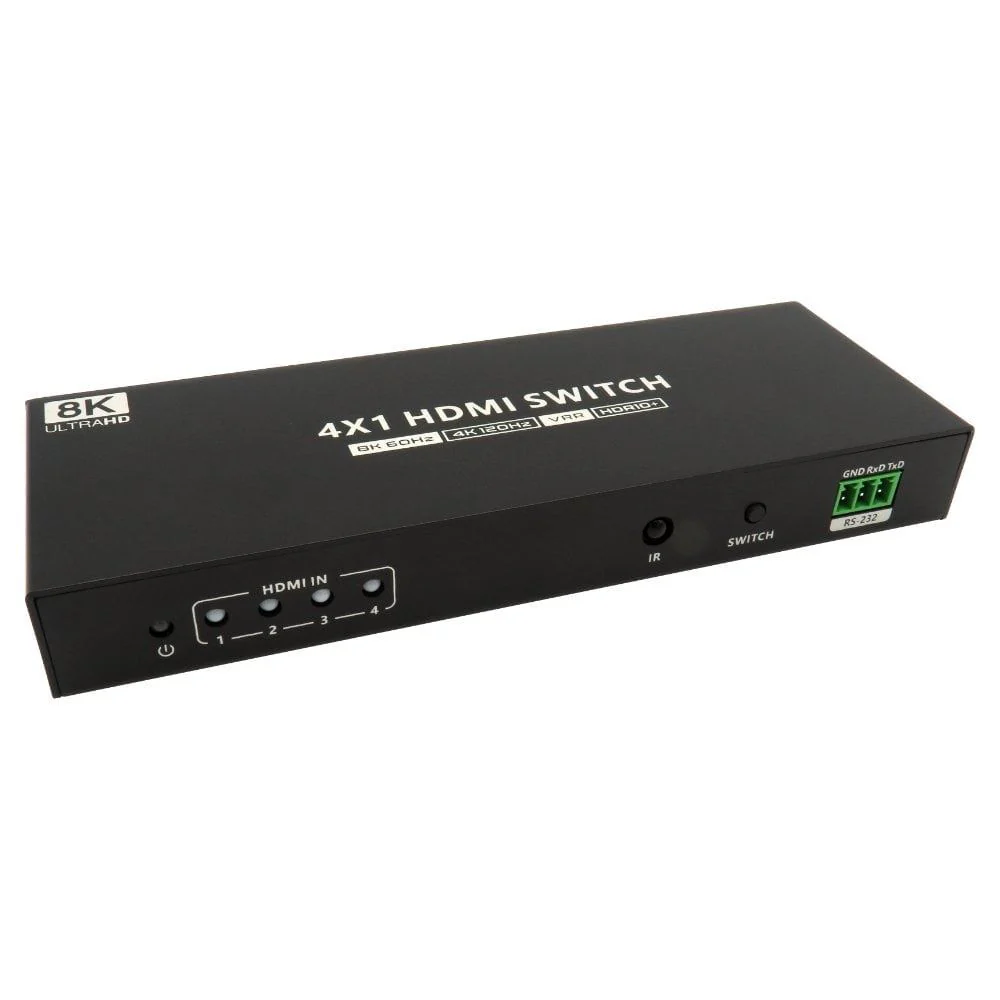

The HD8K-SWB4 HDMI v2.1 switch supports 4 HDMI signal inputs and 1 HDMI signal output. The highest supported resolution is 8K @ 60Hz and is backward compatible. A variety of control methods (IR remote control and RS-232 switch) can easily switch the content of the 4 HDMI signal sources to the display. HDMI Switches are widely used in security monitoring, media entertainment and broadcasting.

HDMI Version: HDMI 2.1, backwards compatible Supports HDCP 2.3 HDMI Inputs: 4 HDMI Outputs: 1 Transmission Speed: 48Gbps Video Bandwidth: 1200MHz Supports EDID passthrough Supports 3D, VRR (Free Sync and G-sync) Supports HDR10+, Dolby Vision, HLG, YUV4:4:4
Supported Audio Formats S/PDIF Output:Dolby AtmosDolby True HDDTS:XDTS-HDHDMI Output:Dolby AtmosDolby Digital 7.1CHDolby True HDDTS:XDTS-HDLPCM 7.1CH Supported Video Resolutions7680 x 4320 @ 60Hz4096 x 2160 @ 120Hz3840 x 2160 @ 120Hz3440 x 1600 @ 60Hz3440 x 1440 @ 60Hz2560 x 1600 @ 60Hz2560 x 1440 @ 120Hz2560 x 1080 @ 60Hz2048 x 1080 @ 60Hz1920 x 1440 @ 120Hz1080p @ 120Hz1080i @ 60Hz720p @ 60Hz
