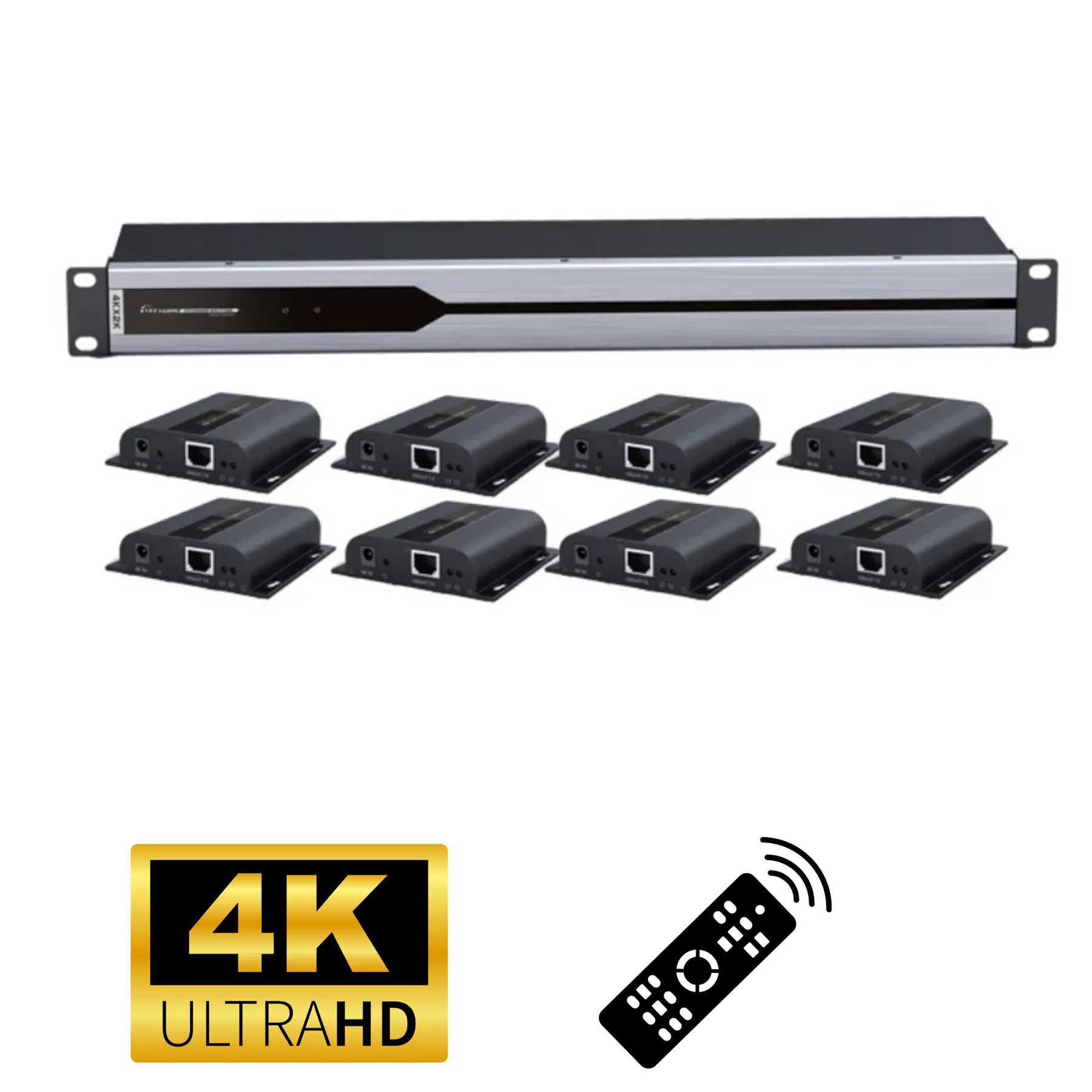

HDMI Distributor 8 Port HDMI Splitter 1x8 4K HDbitT UHD 4K HDMI Video Splitter 1 In 8 out

High performance HDbitT splitter that distributes a 4K HDMI source to eight identical displays at the same time over a network cable. Makes for an ideal AV distribution solution for large scale residential and digital signage applications.
  • Supports video resolutions up to 4Kx2K UHD @30Hz
  • Maximum cable run 120m (Cat6) or 100m (Cat5e)
  • HDbitT technology for stable performance
  • Includes eight HDbitT receivers for installation
  • IR Passback support (20-60kHz frequency) to control source devices
  • HDCP 1.4 compliant
  • Connections: 1x HDMI in, 8x RJ45 out, IR out

Specifications

Voltage/Current DC 12V 2A
Power consumption <24W
HDMI compliance HDMI 1.4
HDCP compliance HDCP 2.2
HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
4Kx2K@24/25/30Hz
IR signal Support 20~60kHz IR device
Network CAT5/5e/6 <80m/<100m/<120m
Working temperature 0~60°C
Storage temperature -30~ 70°C
Humidity 0~90%RH (no condensation)
Dimension (splitter) 483(W) x 110(D) x 45(H)mm
Material Alloy
Weight (splitter) 1390g

In the Box

1 x HDMI splitter, 8 x receivers
9 x Power Adapter 230VAC to 5VDC 2A
Operation Manual
1 x IR remote transmitter, 8 x IR receivers

$400.49

Original: $1,334.97

-70%
HDMI Distributor 8 Port HDMI Splitter 1x8 4K HDbitT UHD 4K HDMI Video Splitter 1 In 8 out—

$1,334.97

$400.49
