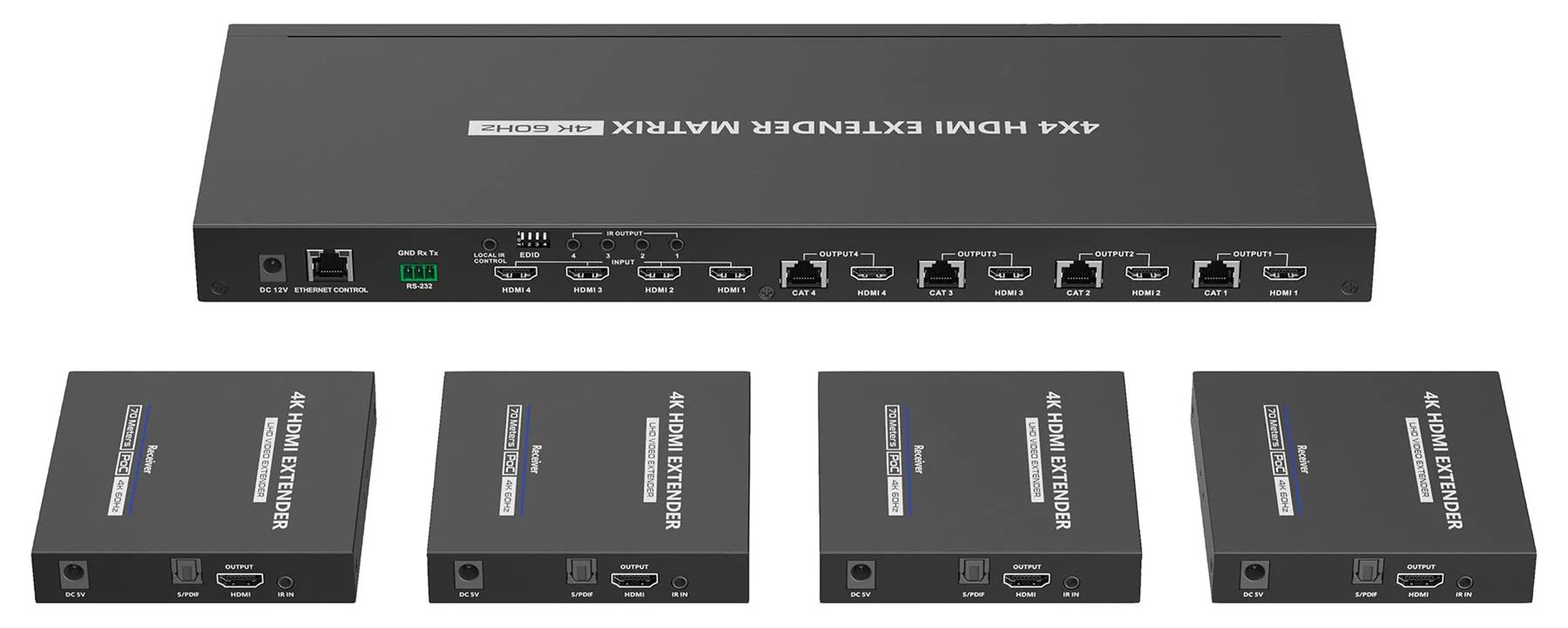

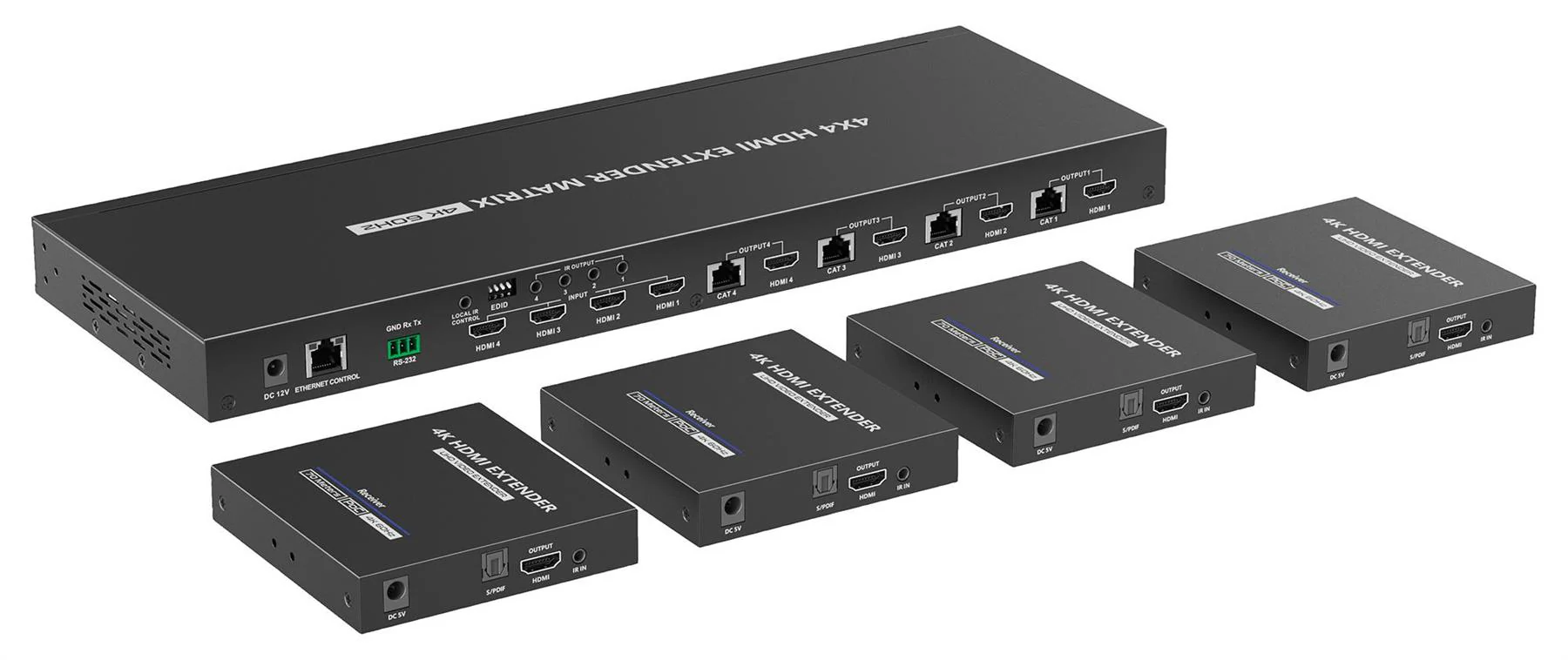

HDMI Distributor Matrix Switch 4x4 Port 4K UHD 60Hz V2.0 4 in 4 Out Distributed Selection

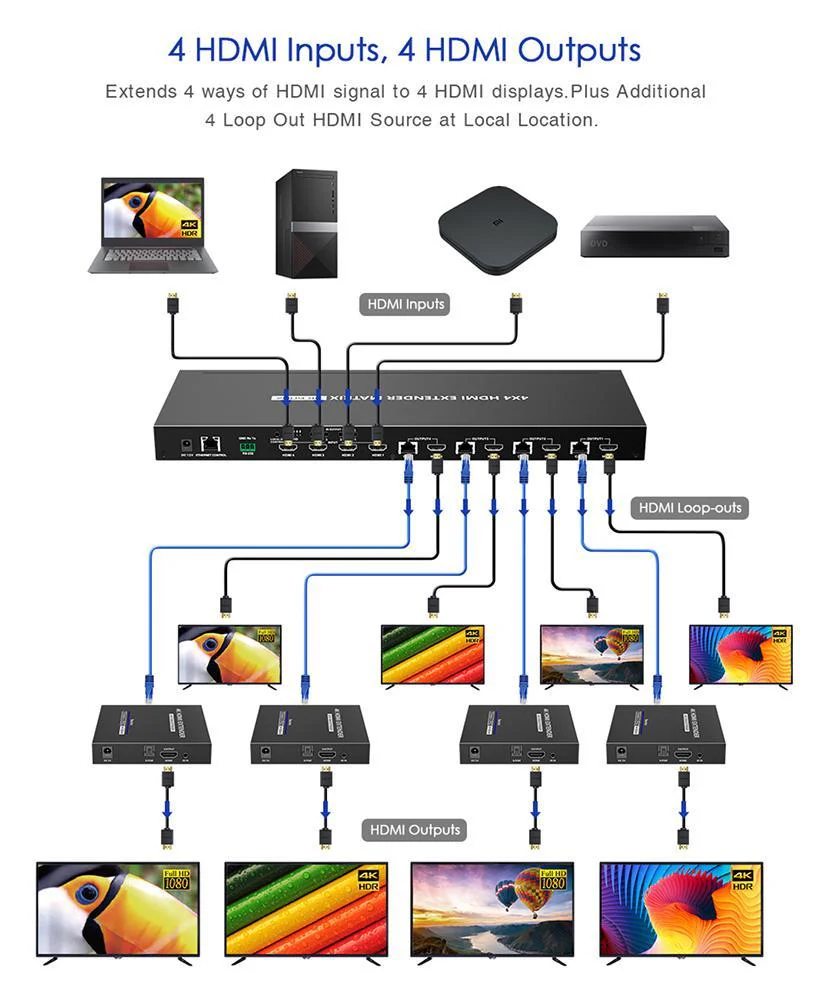

A comprehensive HDMI matrix extender, allowing you to distribute up to four 4K HDMI inputs across four network extended outputs and four local HDMI loop outputs. Supporting resolutions up to 4K Ultra HD with HDR10, the matrix delivers stunning image quality to every connected display. Visually lossless image compression with ipcolor IMAGE standard, delivering superior results when compared with other compression technologies. Equipped with RS232 and Ethernet control support, the matrix extender is ideally suited for both commercial and educational applications; such as video conferencing, monitoring systems and large-scale AV projects.
- Provides four RJ45 ports to extend HDMI signals up to 70m via standard Cat6/7 network cables
- Four separate HDMI loop-out ports for simultaneous local and remote display
- Supports 4K 60Hz HDMI 2.0 resolution with zero latency transmission
- Maximum transmission bandwidth up to 18Gb/s
- Dolby Digital 5.1, Dolby Atmos, DTS/DTS-HD and LPCM audio format support
- Convenient control options with wireless remote, onboard buttons, RS232 and Ethernet control
- EDID passthrough with DIP switches for manual setting, provides 16 settings
- Passthrough IR support (20-60kHz)
- HDMI 2.0 and HDCP 2.2 compliant
- Receivers powered by PoC, no additional PSUs required
- Durable metal housings with Lightning and surge protection
- ESD protection: Contact discharge (±4kV), Air discharge (±8kV)

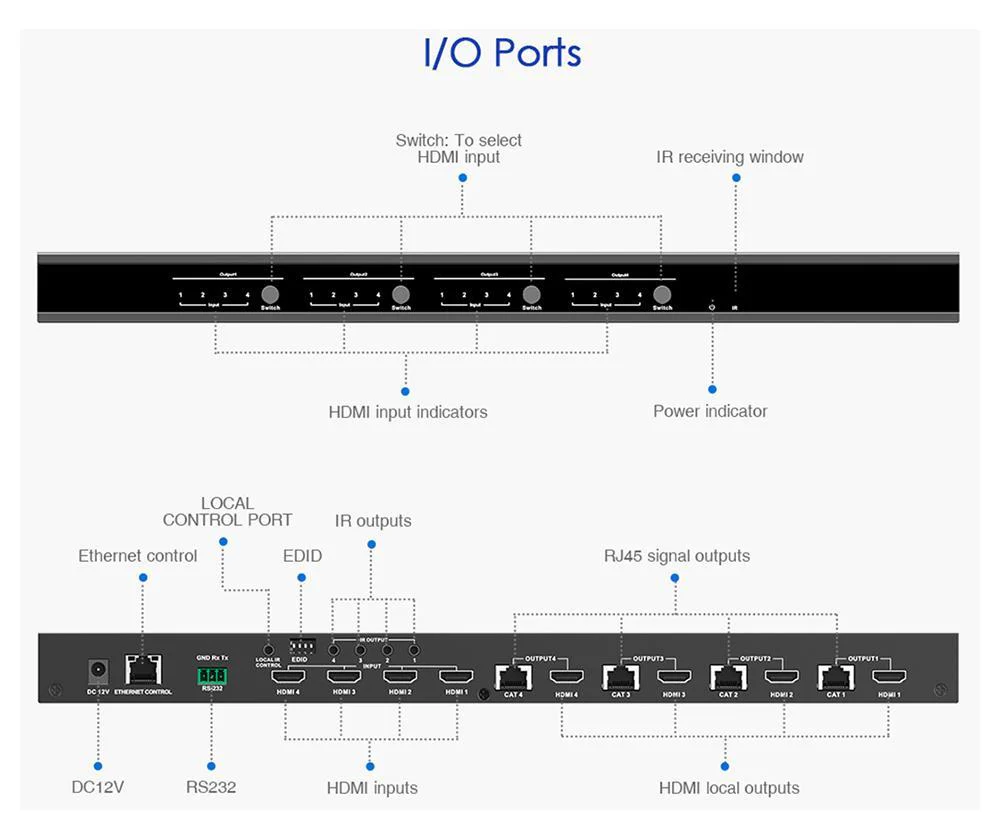

- Transmitter connections: 4x HDMI in/out, 4x RJ45 out, 3.5mm IR in, 4x 3.5mm IR out, RS232, RJ45 control
- Receiver connections: HDMI out, S/PDIF digital audio out, RJ45 in, 3.5mm IR in
- Transmitter dimensions (HxWxD): 29x411x147mm
- Receiver dimensions (HxWxD): 20x106x103mm
Transmitter, 4x receiver, AC adaptor, wireless remote, IR extender, IR receiver, RS232 terminal block, mounting kit and user guide
NOTE:-
Note: Receiver provides power input connection in event network does not support PoC, no additional PSU included, optionally available.
$236.29
Original: $787.63
-70%HDMI Distributor Matrix Switch 4x4 Port 4K UHD 60Hz V2.0 4 in 4 Out Distributed Selection—
$787.63
$236.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A comprehensive HDMI matrix extender, allowing you to distribute up to four 4K HDMI inputs across four network extended outputs and four local HDMI loop outputs. Supporting resolutions up to 4K Ultra HD with HDR10, the matrix delivers stunning image quality to every connected display. Visually lossless image compression with ipcolor IMAGE standard, delivering superior results when compared with other compression technologies. Equipped with RS232 and Ethernet control support, the matrix extender is ideally suited for both commercial and educational applications; such as video conferencing, monitoring systems and large-scale AV projects.
- Provides four RJ45 ports to extend HDMI signals up to 70m via standard Cat6/7 network cables
- Four separate HDMI loop-out ports for simultaneous local and remote display
- Supports 4K 60Hz HDMI 2.0 resolution with zero latency transmission
- Maximum transmission bandwidth up to 18Gb/s
- Dolby Digital 5.1, Dolby Atmos, DTS/DTS-HD and LPCM audio format support
- Convenient control options with wireless remote, onboard buttons, RS232 and Ethernet control
- EDID passthrough with DIP switches for manual setting, provides 16 settings
- Passthrough IR support (20-60kHz)
- HDMI 2.0 and HDCP 2.2 compliant
- Receivers powered by PoC, no additional PSUs required
- Durable metal housings with Lightning and surge protection
- ESD protection: Contact discharge (±4kV), Air discharge (±8kV)
- Transmitter connections: 4x HDMI in/out, 4x RJ45 out, 3.5mm IR in, 4x 3.5mm IR out, RS232, RJ45 control
- Receiver connections: HDMI out, S/PDIF digital audio out, RJ45 in, 3.5mm IR in
- Transmitter dimensions (HxWxD): 29x411x147mm
- Receiver dimensions (HxWxD): 20x106x103mm
Transmitter, 4x receiver, AC adaptor, wireless remote, IR extender, IR receiver, RS232 terminal block, mounting kit and user guide
NOTE:-
Note: Receiver provides power input connection in event network does not support PoC, no additional PSU included, optionally available.
