Brand  Nedis

This professional extender offers a complete sender and receiver set for extending the audio and video signal from your PC to your monitor and speaker set.

Without loss of signal, audio and visual data can be transported from its transmitter (placed near your PC) to its receiver (placed near your monitor) over distances of up to 300 metres.

For optimal image quality a Cat 5e/6 UTP/FTP or SFTP cable should be used.

You can also connect a local monitor and speaker set to the transmitter unit.

Details

• Connects a transmitter and receiver via Cat 5e or 6 cable
• Long distance transmission - up to 300 metres
• Resolution: up to 1920 x 1280 @ 85 Hz (max.)
• Supports one local and one remote VGA display
• Adjustable gain and peak control

• Transmitter input connection: 1x VGA / 1x 3.5 mm
• Transmitter output connection: 1x VGA / 1x RJ45 / 1x 3.5 mm jack

• Receiver input connection: 1x RJ45
• Receiver output connection: 1x VGA / 1x 3.5 mm jack

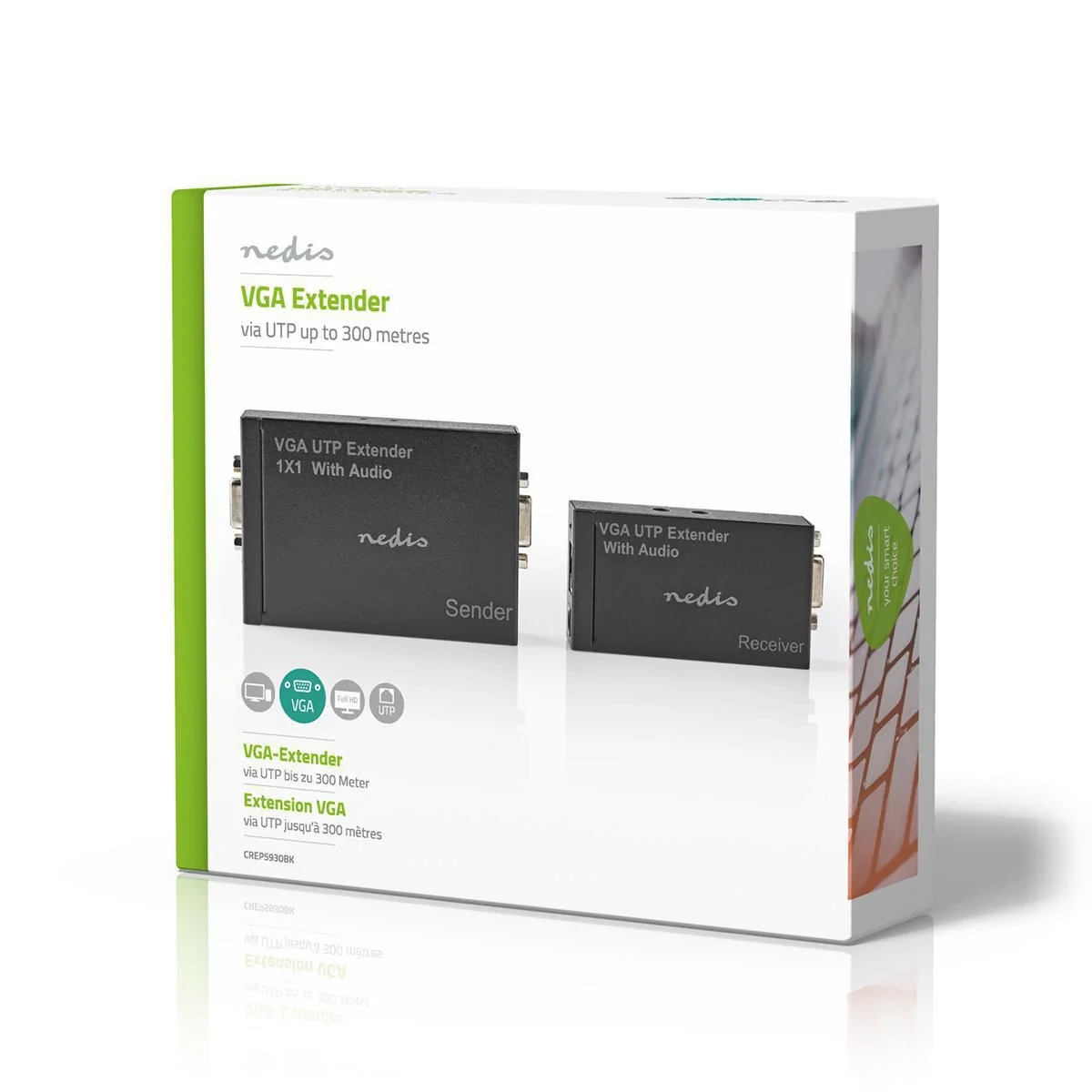

Package Contents

VGA transmitter
VGA receiver
2x power supply
Mounting kit
Quick start guide

Product Dimensions

Length	255
Width	205
Height	60
Weight	0.91 Kg
