UA Series Compact 100V Mixer-Amplifiers

Compact Amplifier in a half width 1U housing, 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input. All governed by a front panel volume controls and a Master output control.

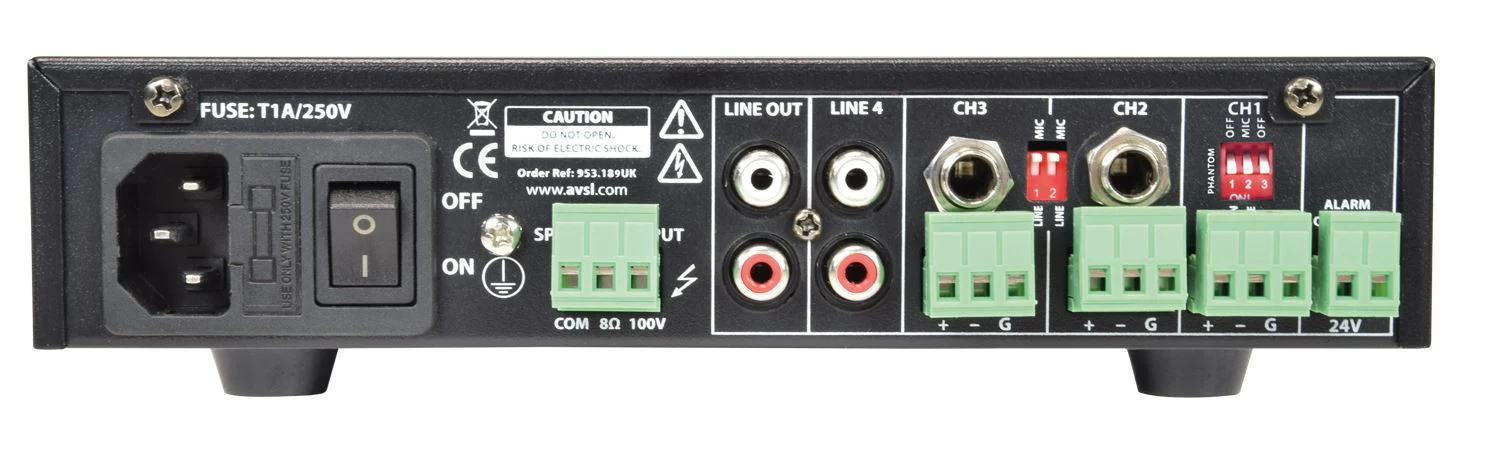

Mono output to either 100V line or 8 ohms speaker load is connected via a removable terminal connector on the rear panel. Supplied with rack-mounting hardware, which can be configured to mount a single unit against a wall or under a worktop.

Designed as a versatile solution for small to medium PA installations.

PRODUCT FEATURES:

Supplied with hardware for rack-mounting 2 units 5 input channels 24V fire alarm mute contacts 100V line or 8 Ohms operation

SPECIFICATION:

Power supply 170-264Vac, 50Hz (IEC) Amplifier : construction Class D + transformer output Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm) Line output 2 x RCA (mono) Speaker output Euroblock terminals: 100V / 8 Ohms / Com Mute 24V relay contacts THD <0.4% @ 1kHz Input impedance 1k Ohms (mic/line) Input sensitivity -10dB (line), -45dB (mic) SNR 80dB (line), 75dB (mic) Frequency response 100Hz - 18kHz Output power : rms 90W Dimensions 300 x 210 x 44mm Weight 2.99kg
